Mail Technical Parameter
|
Rated Power |
1 KW |
|
Rated Voltage |
13.5 V DC |
|
Output Frequency |
50 HZ |
|
Rated Speed |
4800 rpm |
|
Insulation Class |
H Class |
|
Temperature Rise Class |
B Class |
|
Cooking mode |
Fan Cooling |
|
Dimension |
（H）170X（W）144X（L）165 |
Mail Technical Parameter
|
Rated Power |
25 KW |
|
Rated Voltage |
400 V |
|
Output Frequency |
50 HZ |
|
Rated Speed |
2400 rpm |
|
Insulation Class |
H Class |
|
Temperature Rise Class |
B Class |
|
Cooling mode |
Fan Cooling |
|
Dimension |
（H）300X（W）250X（L）370 |
Mail Technical Parameter
|
Rated Power |
70 KW |
|
Rated Voltage |
400 V |
|
Output Frequency |
50 HZ |
|
Rated Speed |
1800 rpm |
|
Insulation Class |
H Class |
|
Temperature Rise Class |
B Class |
|
Cooling mode |
Fan Cooling |
|
Dimension |
（H）350X（W）315X（L）520 |

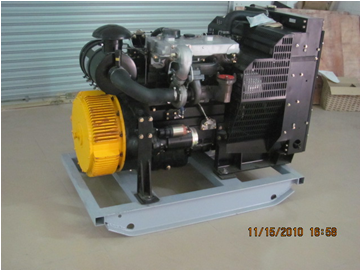

Application:Diesel generators
Main Technical Parameter
|
Rated Power |
110 KW |
|
Rated Voltage |
400 V |
|
Output Frequency |
50 HZ |
|
Rated Speed |
1800 rpm |
|
Insulation Class |
H Class |
|
Temperature Rise Class |
B Class |
|
Cooling mode |
Fan Cooling |
|
Dimension |
（H）470X（W）520X（L）550 |
1)application:

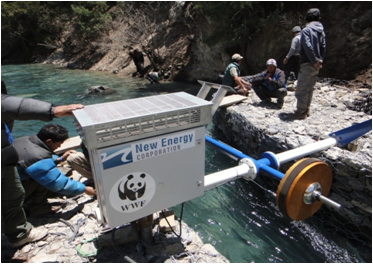

Hydropower generator, the use of water flow velocity of 1 m / s of the river,
Using a 1.8-meter diameter spinning wheel drive 5KW generator power generation

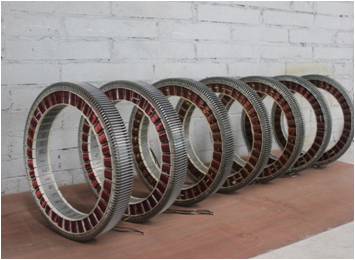

2)application：Hydroelectric generator stator
