Is the most common form of permanent magnet material to powder metallurgy, materials are divided into into barium (Ba) and strontium material (Sr) two kinds, and is divided into anisotropic and isotropic, it is not a permanent magnet easy demagnetization type of corrosion is not easy, the maximum operating temperature up to 250ºC, more hard and brittle, with diamond cutting tools such as sand. Application: Only alloy formation mold.A the permanent magnet motor (Motor) and the heavy use of products such as speakers (speaker) and other fields.
Ferrite Shapes
Ferrite Tiles
Ferrite Blocks
Ferrite Rings
Ferrite Disks
Ferrite cylinders
Material
Br
HcB
HcJ
(BH) max
mT
KG
KA/m
KOe
Kj/m3
MGOe
Y8T
200~235
2.0~2.35
125~160
1.57~2.01
210~280
2.64~3.52
6.5~9.5
0.8~1.2
Y20
320~380
3.2~3.8
135~190
1.70~2.38
140~195
1.76~2.45
18.0~22.0
2.3~2.8
Y22H
310~360
3.1~3.6
220~2500
2.77~3.14
280~320
3.52~4.02
20.0~24.0
2.5~3.0
Y23
320~370
3.2~3.7
170~190
2.14~2.38
190~230
2.39~2.89
20.0~25.5
2.5~3.2
Y25
360~400
3.6~4.0
135~170
1.70~2.14
140~200
1.76~2.51
22.5~28.0
2.8~3.5
Y26H
360~390
3.6~3.9
220~250
225~255
2.83~3.21
23.0~28.0
2.9~3.5
Y27H
370~400
3.7~4.0
205~250
2.58~3.14
210~255
2.64~3.21
25.0~29.0
3.1~3.7
Y28
175~210
2.20~2.64
180~220
2.26~2.77
26.0~30.0
3.3~3.8
Y30
Y30H-1
380~400
3.8~4.0
230~275
2.89~3.46
235~290
2.95~3.65
27.0~32.0
3.4~4.1
Y30H-2
395~415
3.95~4.15
275~300
3.46~3.77
310~335
3.90~4.21
28.5~32.5
3.5~4.0
Y32
400~420
4.0~4.2
160~190
2.01~2.38
165~195
2.07~2.45
30.0~33.5
3.8~4.2
Y33
410~430
4.1~4.3
31.5~35.0
4.0~4.4
C1
230
2.3
148
1.86
258
3.5
8.36
1.05
C5
380
3.8
191
2.4
199
2.5
27
3.4
C7
340
3.23
318
4.00
21.9
2.75
C8A
385
3.85
235
2.95
242
3.05
27.8
C8B
420
4.2
232
2.913
236
2.96
32.8
4.12
C9
280
3.516
320
4.01
26.4
3.32
C10
400
4.0
288
3.617
3.51
30.4
3.82
C11
430
4.3
200
2.512
204
2.56
34.4
4.32

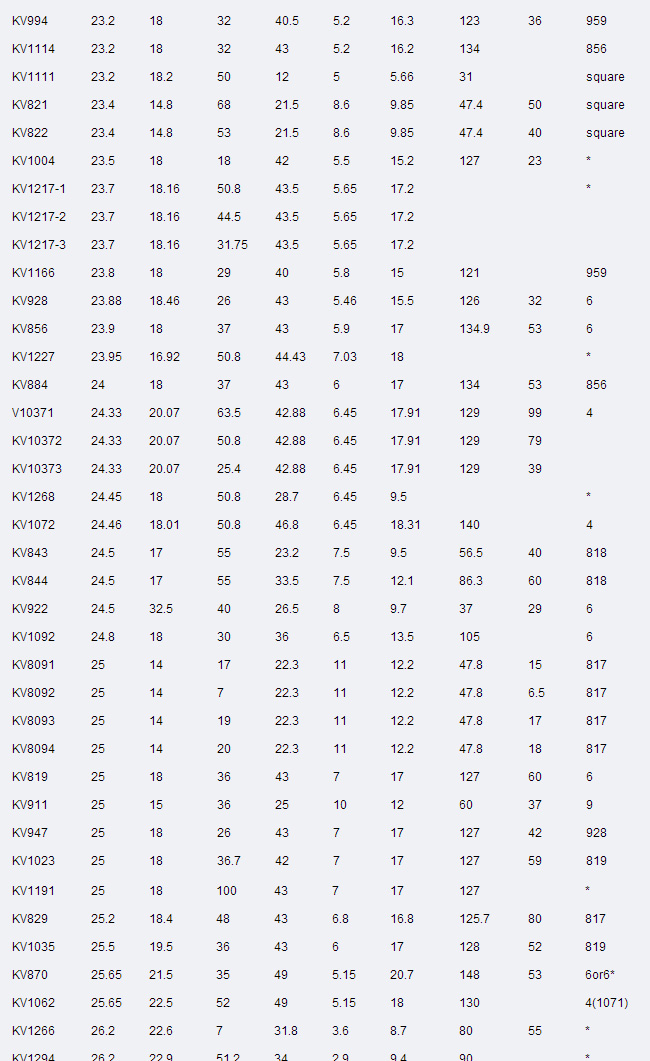

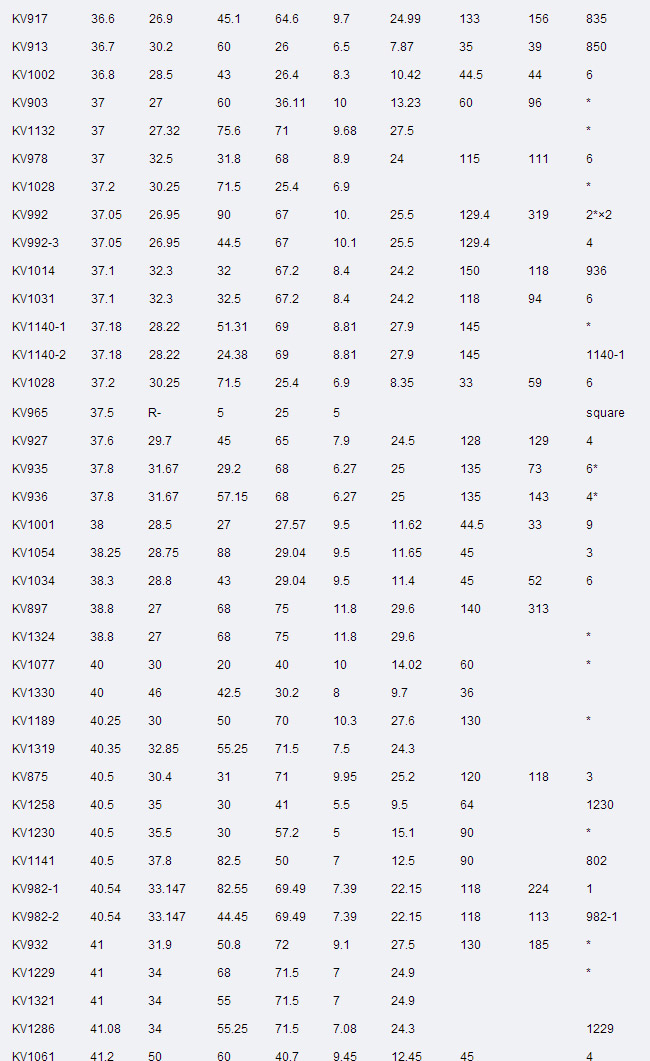

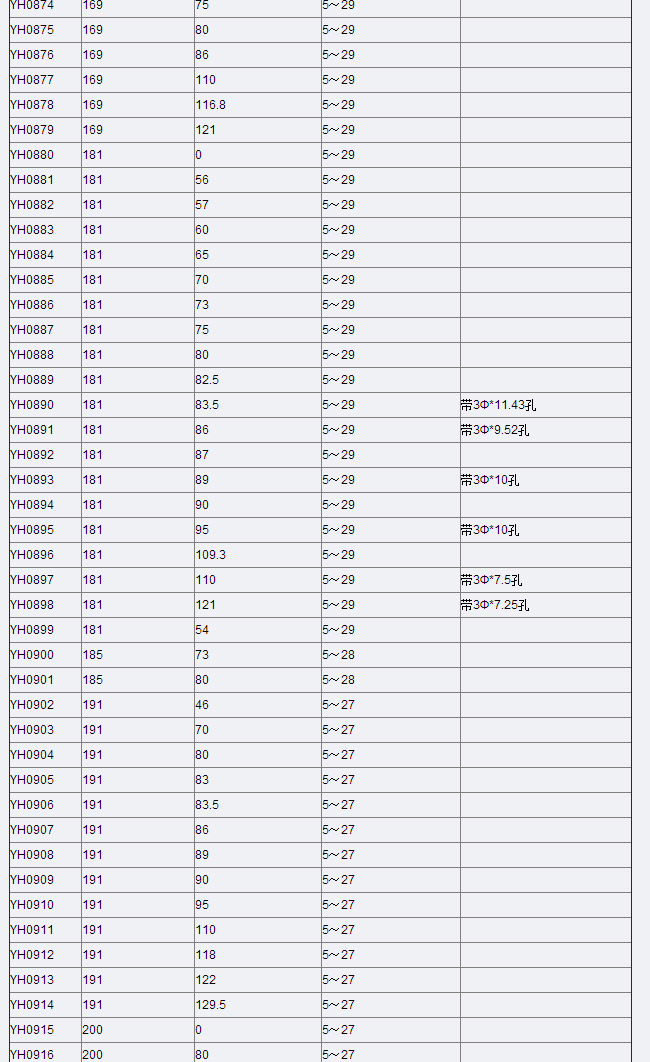

Below magnets are dimensions we have made tools before.

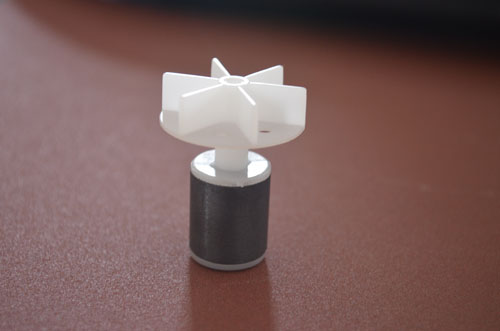

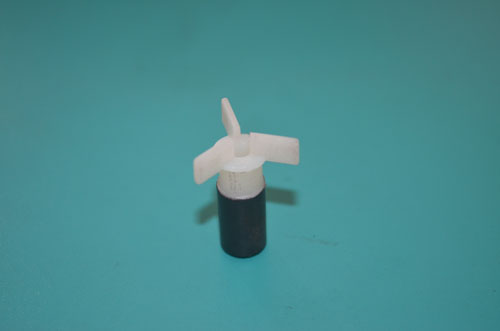

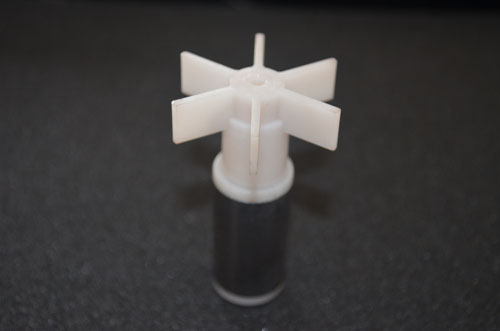

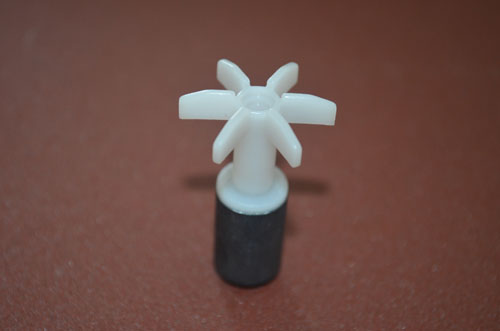

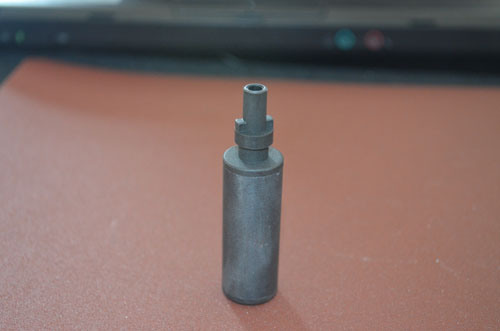

Item description: ferrite permanent magnet coercive force: 230-280 (KA/m) residual magnetism: 3850-4000 (T) Intrinsic coercive force: 240-290 (KA/m) the biggest energy product: 27-32.5 (KJ/m3) materials brand: Y30BH-1 Density: 5.0 (g/cm3) working temperature: 300 degrees (℃) within the Curie temperature: 450-460 (℃) Ferrite magnetic materials, radial orientation in cylindrical rotor magnets specifications and main technical parameters specifications specification phi 12 × φ 4 x 12 phi 12 × φ 4 x 24 φ 13 × φ 4.5 by 20 φ 15 × φ 4.5 by 20 φ 15 × φ 4.5 by 28 φ 18 × φ 6 x 24 φ 18 × φ 6 × 40 φ 18.3 by φ 6 × 32 φ 19 × φ 6 × 30 φ 20 "x φ seven by 45 φ 22 × φ 8 × 45 φ 25 × φ 8 × 50 φ 21 × φ seven by 32 φ 30 × φ 10 x 60 pole number 2 table magnetic index (GS) 1250-1, 1750 according to customers specific requirements manufacturing specifications of rotor magnets 2, and offers injection complete rotor magnets
